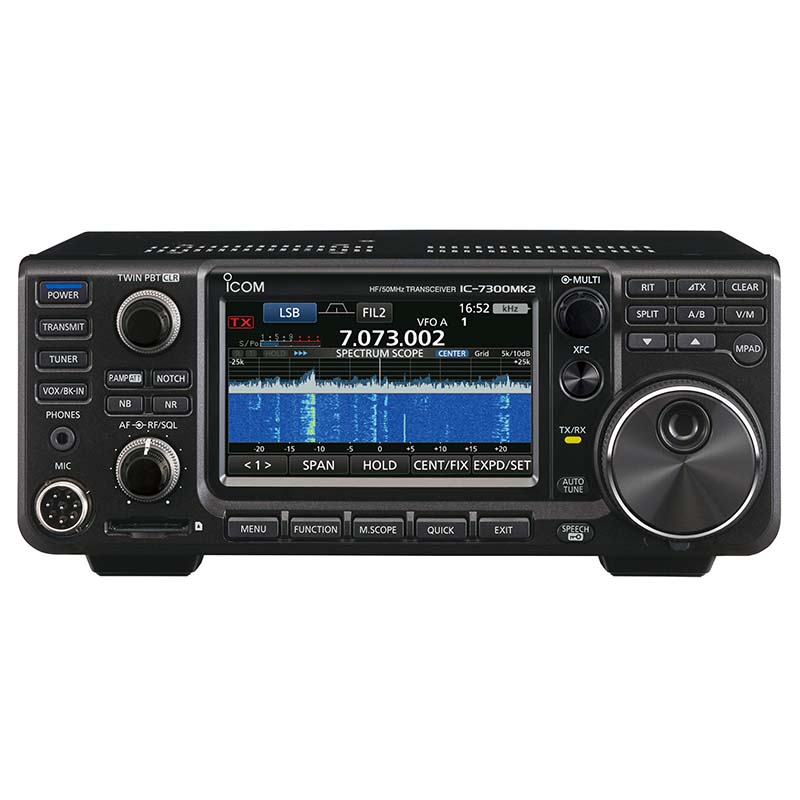

The ICOM IC-7300 MKII represents the evolution of Icom’s groundbreaking SDR platform, building upon the global success of the original IC-7300.
The MKII version brings enhanced receiver dynamic range, lower phase noise, and modern connectivity features — including HDMI output, USB-C with dual COM ports, and a LAN interface for remote operation.
Key Features
- Coverage: HF + 50 MHz + 70 MHz (EU model)
- Direct Sampling SDR design for superior performance
- Enhanced RMDR and reduced phase noise
- HDMI output for external monitor
- USB-C with dual COM ports
- LAN for remote control
- Built-in CW decoder & keyer
- Dedicated RX antenna input
- Automatic antenna tuner
- 4.3-inch TFT LCD Touch Display
- DSP features (NR, NB, IF filter, twin PBT, notch)
- Low current consumption & firmware upgradeable
Technical Specifications
- Frequency Range: 0.030 – 74.800 MHz (TX: 1.8 – 54 MHz / 70 MHz EU)
- Receiver Type: Direct Sampling SDR
- Output Power: 5 – 100 W adjustable
- Sensitivity: 0.15 µV (SSB/CW), 1 µV (AM)
- Modes: SSB, CW, RTTY, AM, FM, Digital
- Display: 4.3” TFT LCD Touch
- USB Interface: USB-C (dual COM, audio I/O, firmware update)
- LAN: RJ-45 Ethernet (10/100 Mbps)
- HDMI Output: Full HD 1080p
- Power Supply: 13.8 V DC ±15%
- Dimensions: 240 × 94 × 238 mm
- Weight: 4.2 kg
